Electrical Modes

For engineers and researchers that need accurate data on conductance, sample resistance, and other electrical and topographic properties, Park offers a range of electrical scanning modes.

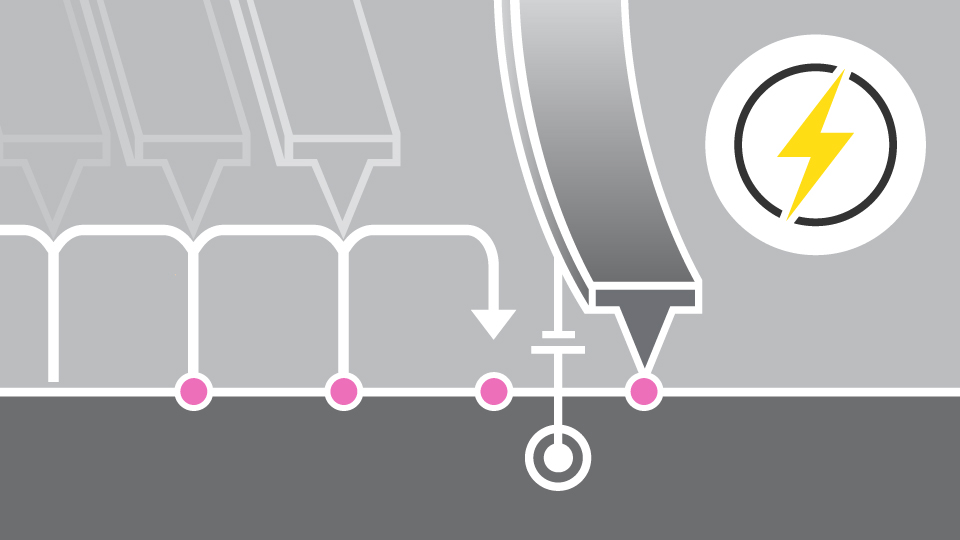

PinPoint™ AFM Nanoelectrical Modes

eliminate lateral shear forces between the cantilever tip and the surface

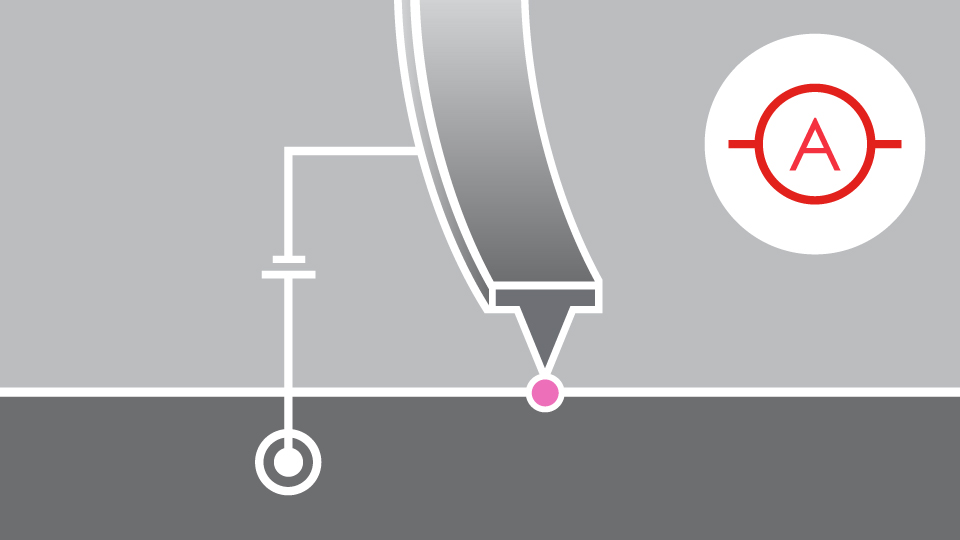

Conductive AFM (C-AFM)

Probing the Local Electronic Structure of a Sample’s Surface

IV Spectroscopy

IV spectroscopy is measured on the selected sample area after taking a sample image

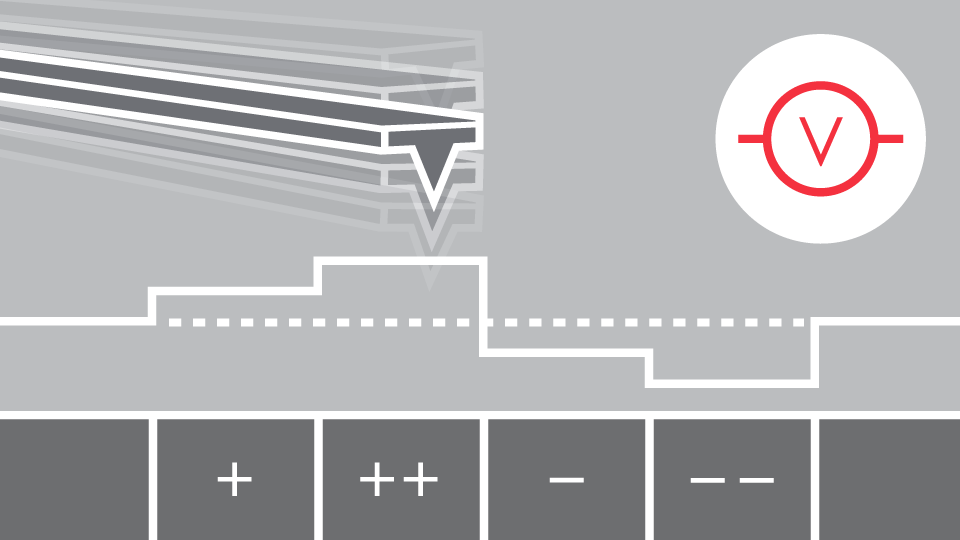

Electrostatic Force Microscopy (EFM)

High Resolution and High Sensitivity Imaging of Electrostatic Force

Kelvin Probe Force Microscopy (KPFM)

High Resolution and High Sensitivity Imaging of Surface Potential

Dynamic Contact EFM (DC-EFM)

High Resolution and High Sensitivity Imaging of Electrostatic Force

Piezoresponse Force Microscopy (PFM)

electromechanical material properties on the nanometer scale in addition to the sample topography

Piezoresponse Force Spectroscopy

Local amplitude/phase response to a DC bias between tip and sample surface.

QuickStep™ SCM

QuickStep™ to make faster SCM data acquisition

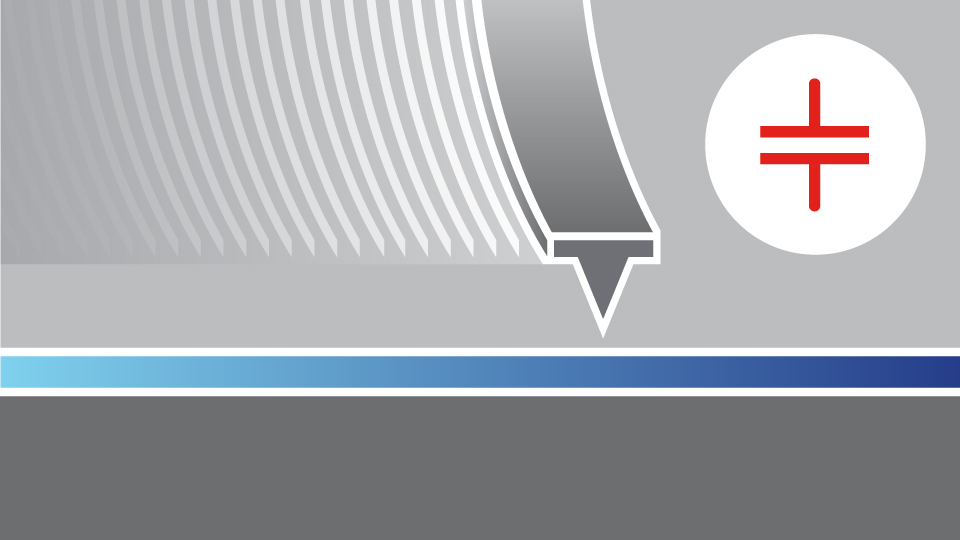

Scanning Capacitance Microscopy (SCM)

High Resolution and High Sensitivity Imaging of Charge Distribution

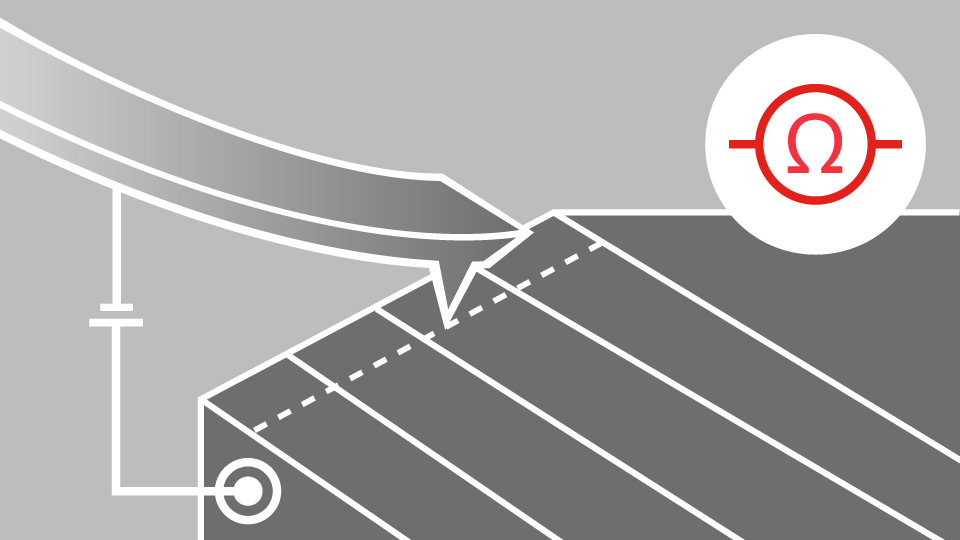

Scanning Spreading Resistance Microscopy (SSRM)

Probing the Local Electronic Structure of a Sample’s Surface

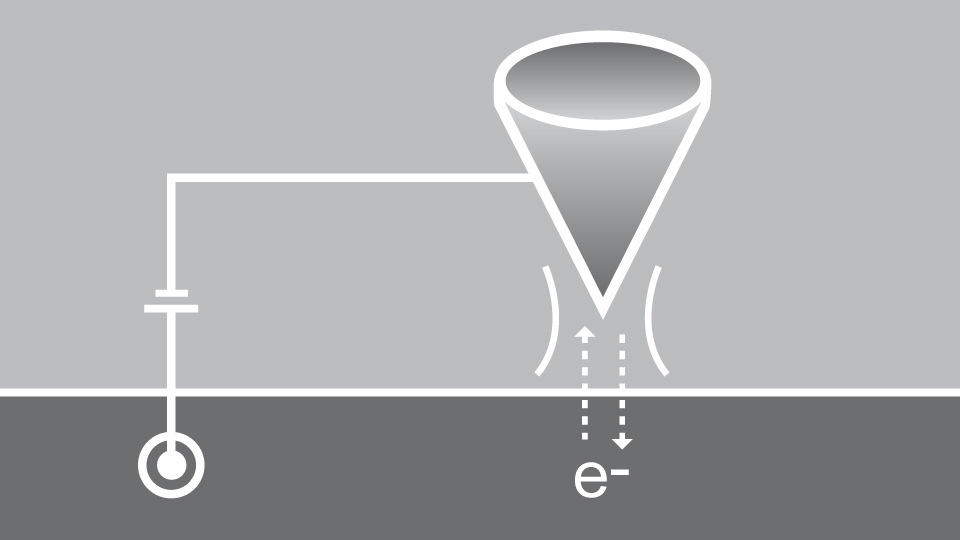

Scanning Tunneling Microscopy (STM)

Probing the Local Electronic Structure of a Sample’s Surface

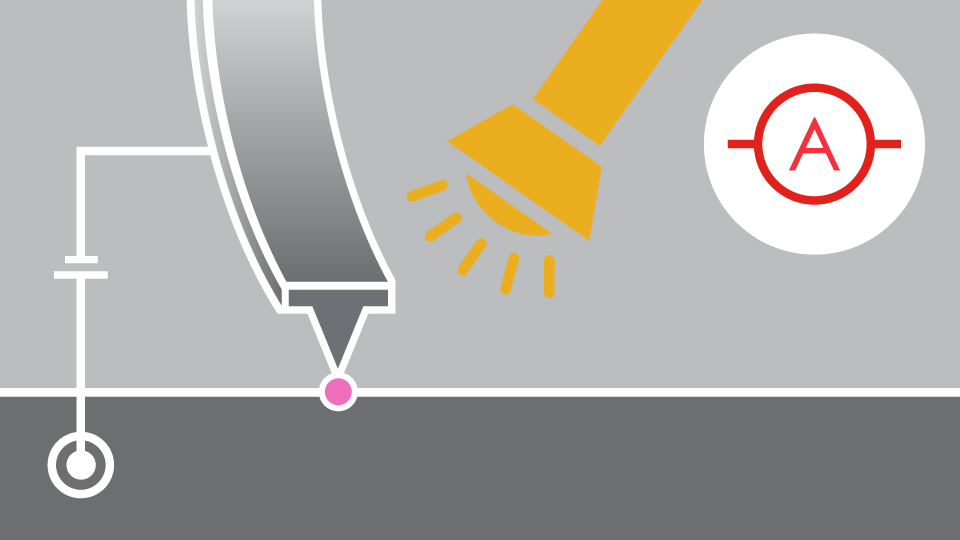

Photo Current Mapping (PCM)

Enabling Innovation in Photosensitive Materials Research
