Park Fast PinPoint™
Revolutionizing AFM Imaging for High-Speed Nanomechanical Property Mapping with Accurate Material Characterization
x
What is Fast PinPoint™ ?

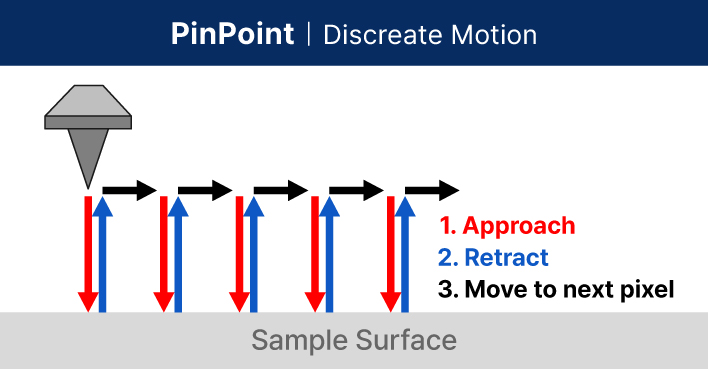

PinPoint is a Park Systems’ unique AFM mode designed to measure nanomechanical properties including elastic modulus, adhesion and stiffness while simultaneously capturing high-resolution topography. By precisely controlling force and minimizing lateral movement, it ensures accurate measurement while effectively minimizing sample damage during measurement across diverse materials, from soft polymers to rigid composites.

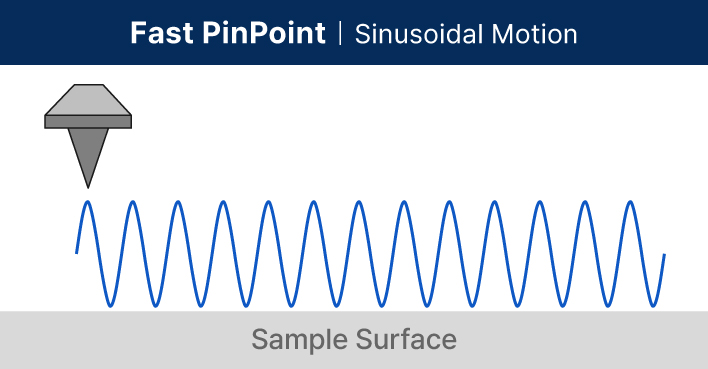

Fast PinPoint advances the capabilities of traditional PinPoint by significantly increasing measurement speed without compromising accuracy. It provides rapid, high-resolution mechanical property mapping, making it ideal for analyzing dynamic or time-sensitive structures.
Fast PinPoint advances the capabilities of traditional PinPoint by significantly increasing measurement speed without compromising accuracy. It provides rapid, high-resolution mechanical property mapping, making it ideal for analyzing dynamic or time-sensitive structures.
Key Features
High-Speed Mechanical Property Mapping
Quantitative analysis of elastic modulus, adhesion, and stiffness at a fraction of the time compared to conventional methods.
Wide Material Applicability
Designed for polymers, composites, biological materials, semiconductors, and more.
Every Contact Counts
Force-distance (F/d) curves are acquired at every contact point, ensuring comprehensive mechanical characterization.
Broad Frequency Range (100 Hz – 2 kHz)
Enables dynamic mechanical characterization, essential for materials with frequency-dependent properties.
Precise Force Control
Minimizes lateral forces for enhanced accuracy, making it suitable for delicate and sensitive samples.
How Does Fast PinPoint Compare to PinPoint?
| PinPoint | Fast PinPoint | |
|---|---|---|
| Acquired Data | Topography, Modulus, Adhesion, Stiffness, Energy dissipation, Deformation | Topography, Modulus, Adhesion, Stiffness, Energy dissipation, Deformation |
| Z Modulation frequency | <100 Hz | 100 Hz to 2 kHz |
| Acquired Time | ~16 min for 128 × 128 pixels | ~2 min for 128 × 128 pixels |
| Z Scanner Parameter | Z Scanner's movement distance (µm) Z Scanner's movement speed (µm/s) | Amplitude (nm) or Driving Voltage (V) Frequency (Hz) |
Applications

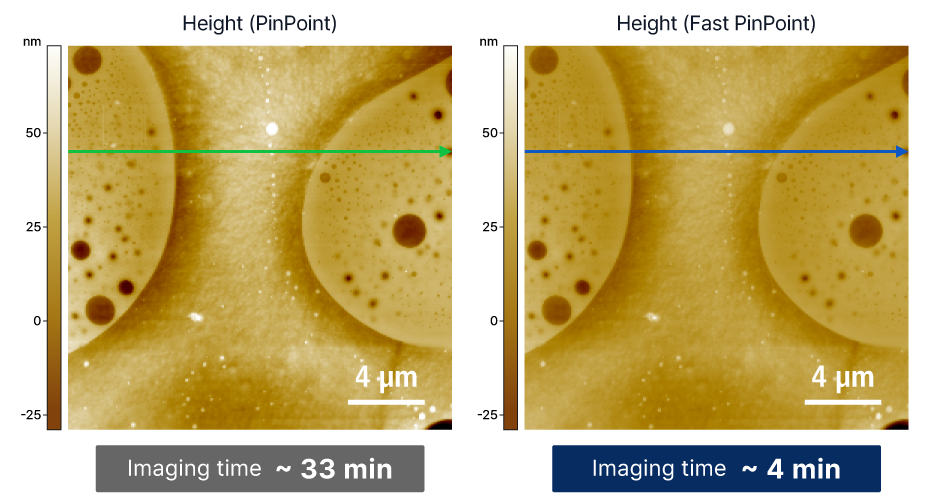

Fast PinPoint delivers the same highly accurate modulus and adhesion measurements as PinPoint, but at significantly faster speeds. Comparative studies show that Fast PinPoint achieves identical results while reducing imaging time nearly 8 times.
PS-LDPE Sample

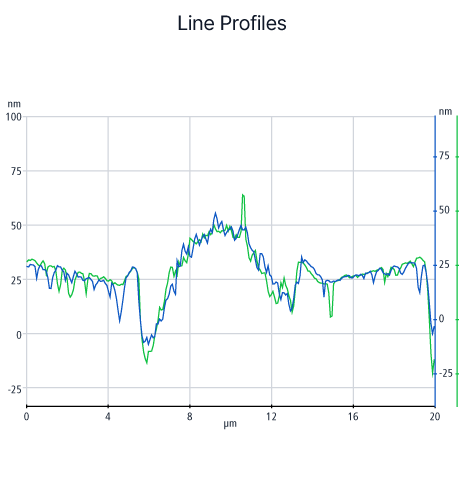

Fast PinPoint provides faster measurements with the same results as PinPoint
Fast PinPoint with C-AFM

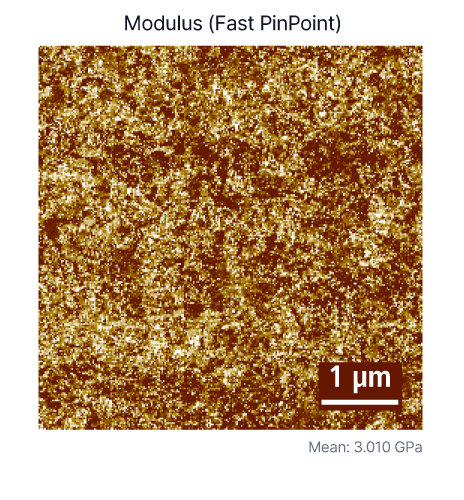

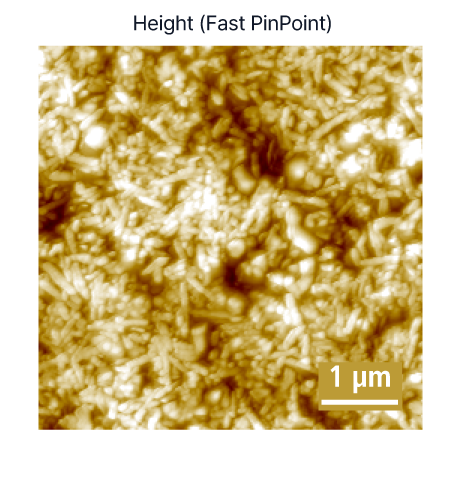

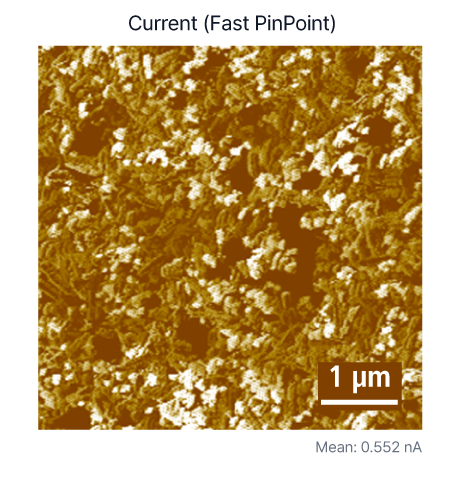

Fast PinPoint measures both modulus and electrical properties such as current.
What Applications Can Be Measured?
Polymer
Biological Materials
Semiconductor
Battery
