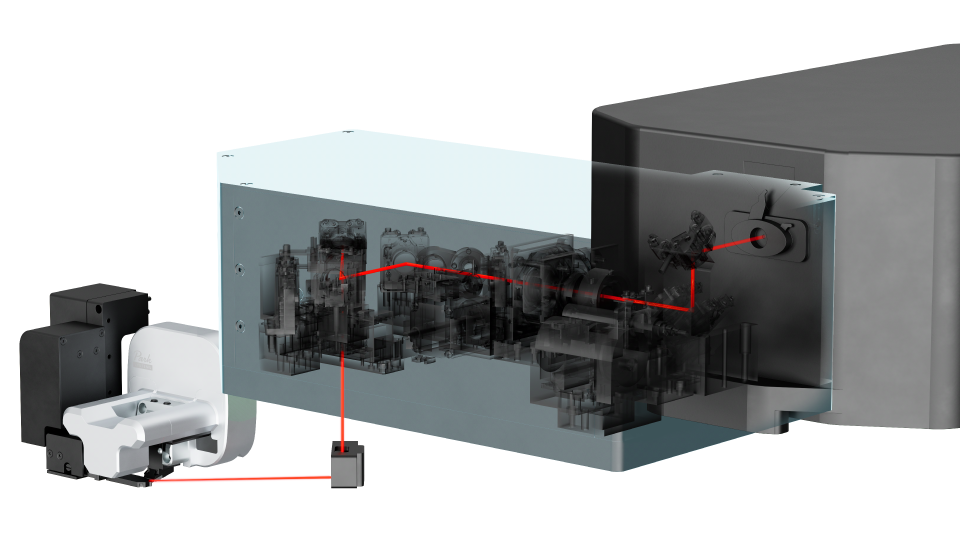

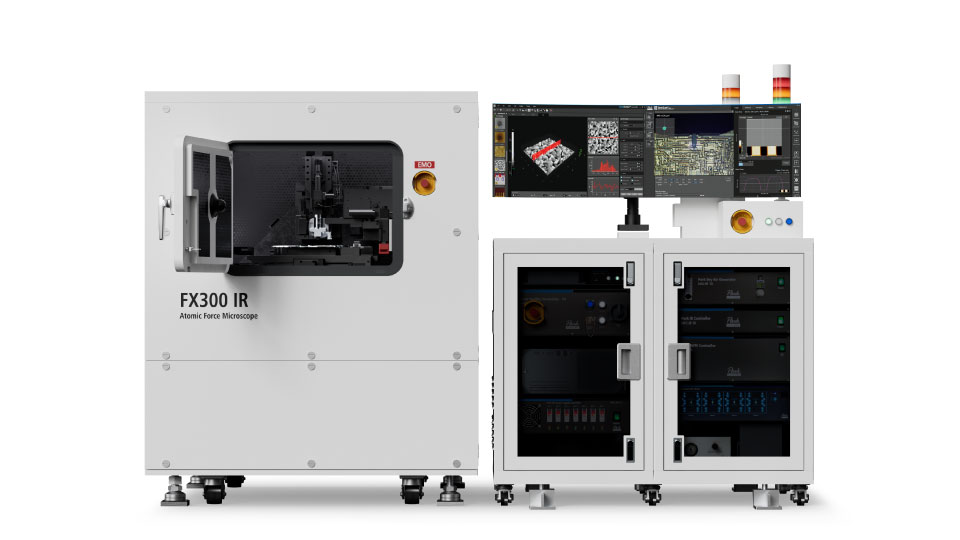

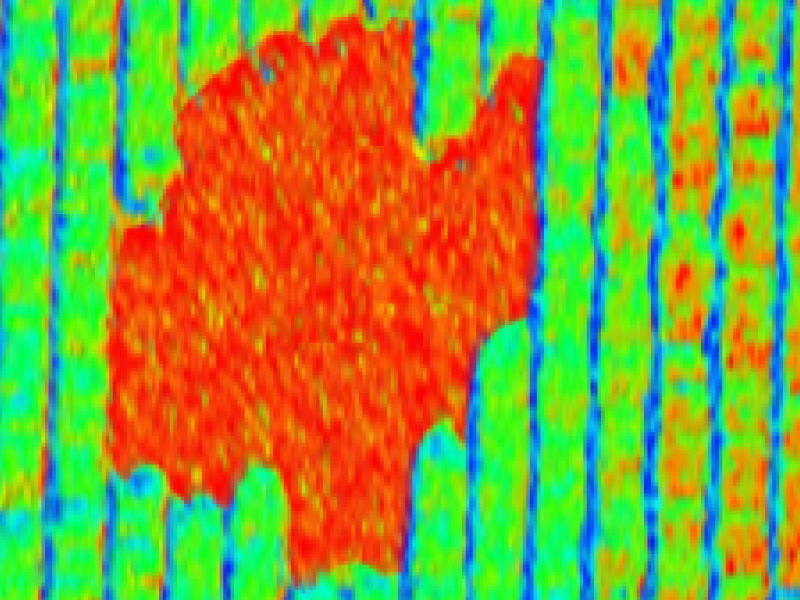

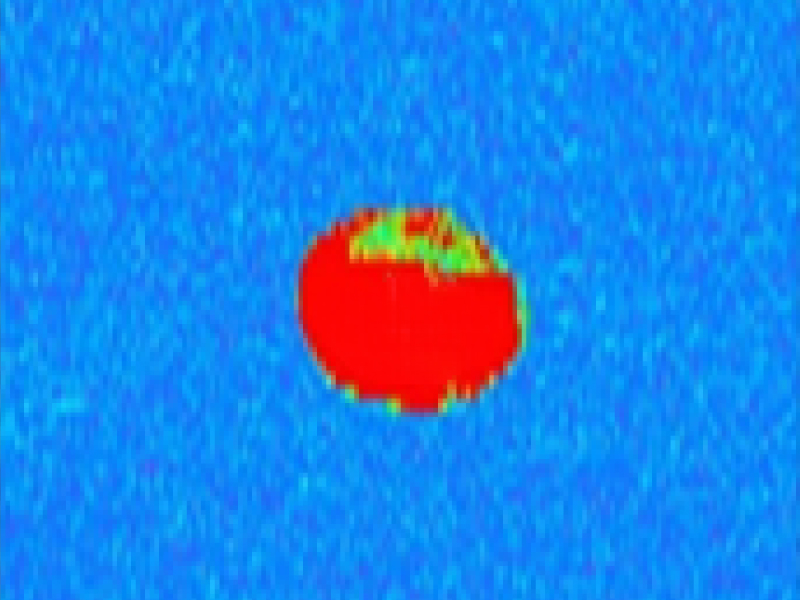

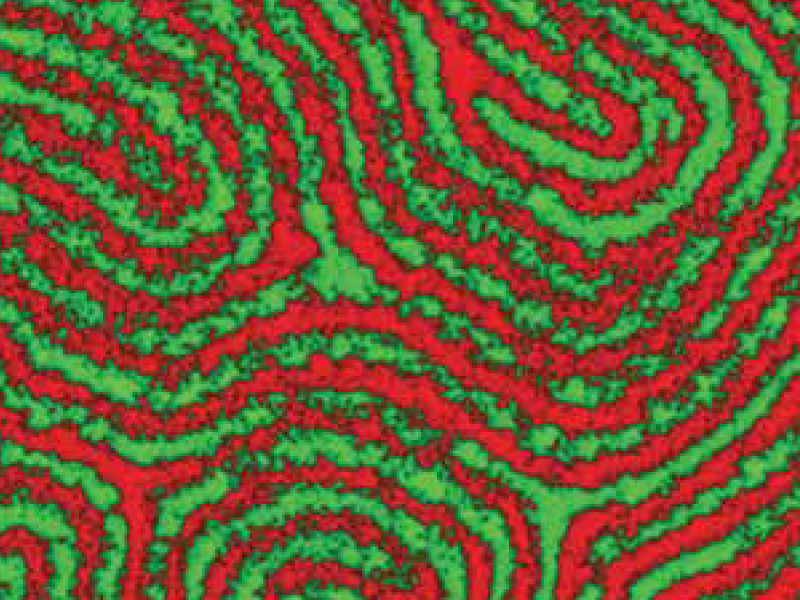

Park AFM-IR Spectrometers
AFM-integrated nanoscale IR spectroscopy for advanced material characterization
The Park AFM-IR Spectrometers seamlessly integrate atomic force microscopy (AFM) with photo-induced force microscopy (PiFM) technology. These innovative platforms deliver molecular vibration mapping at the nanometer scale while maintaining full AFM capabilities for comprehensive topographic, nanomechanical, electrical, and thermal analysis.
With PiFM mode enabling simultaneous characterization of chemical composition and surface topography, Park AFM-IR spectrometers are ideal for nanoscale IR spectroscopy and imaging, semiconductor research, and advanced materials characterization.
Key Features

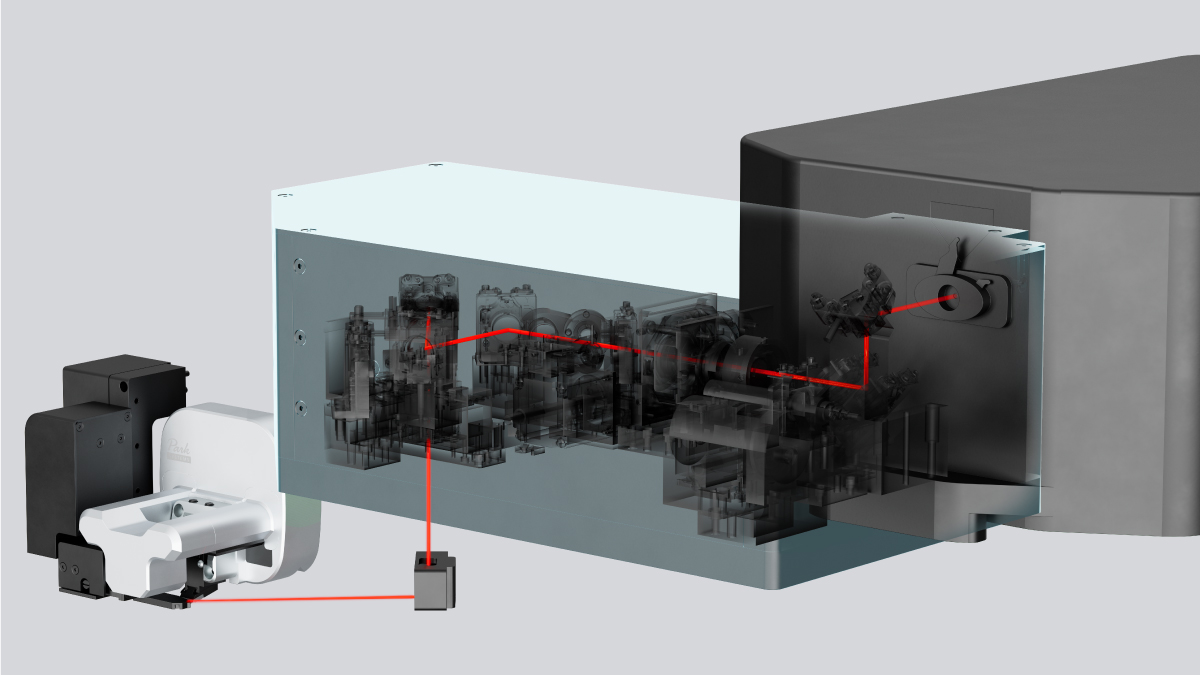

Streamlined Automated Workflow for Nanoscale IR Measurements
Park AFM-IR Spectrometers build on the proven automation of the FX platform, which includes probe exchange as well as vision-guided AFM laser alignment, and further enhance it with advanced automation specifically designed for IR measurements.
In particular, the system features a fully automated IR beam alignment routine that uses the PiFM signal itself as real-time feedback to locate the optimal beam position.

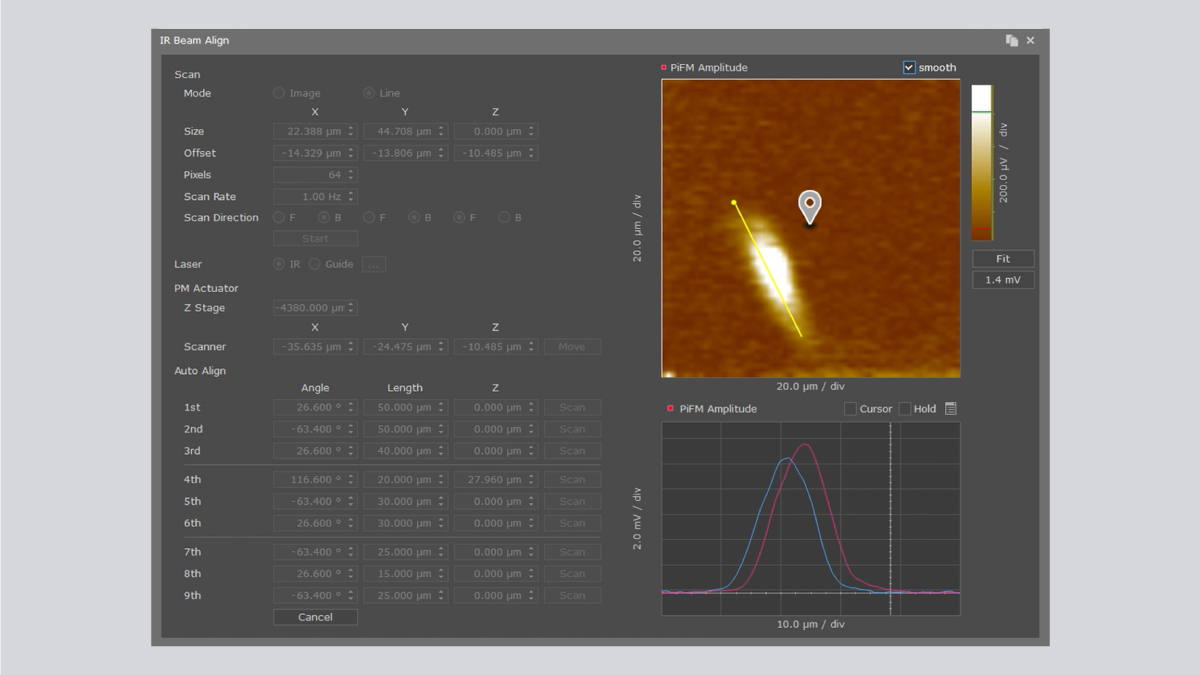

Automatic IR Beam Alignment Powered by SmartScan™
SmartScan™ performs automatic IR beam alignment. After a full-stroke scan using the parabolic mirror (PM) actuator, the system automatically identifies the position where the PiFM signal reaches its highest intensity. This ensures precise alignment and maximizes signal quality with minimal user intervention.
Non-Contact™ IR Measurements
Park AFM-IR Spectrometers leverage Photo-induced Force Microscopy (PiFM) to perform fully non-contact infrared measurements, detecting the photo-induced force between the AFM tip and the sample without ever touching the surface. This approach eliminates sample damage and tip contamination inherent in contact-based techniques, achieving sub-10 nm spatial resolution and extending probe lifetime.
Non-contact mode feedback maintains precise tip–sample separation throughout the measurement, ensuring high reproducibility on soft or delicate materials. With streamlined operation, users can focus on results rather than setup, making AFM-IR analysis more reliable and accessible than ever.
Selectable Detection Modes for PiFM

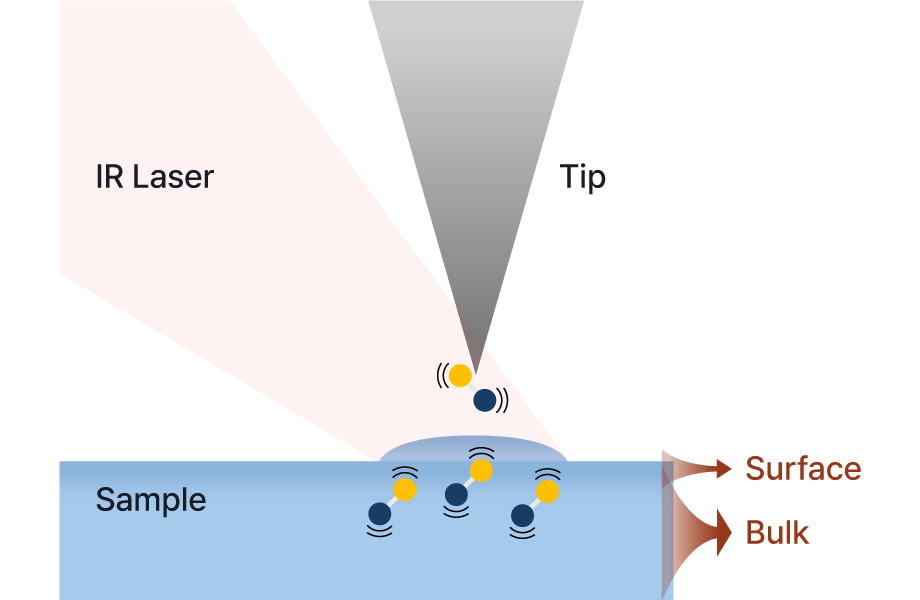

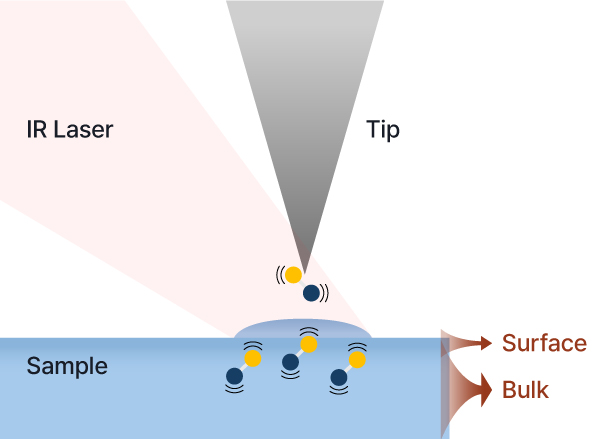

Park AFM-IR Spectrometers offer two distinct detection modes, enabling users to optimize measurements based on sample characteristics and analysis goals. Direct mode tunes the laser to the cantilever’s resonance frequency, maximizing signal strength and making it effective for probing broader or deeper sample responses.
Sideband mode modulates the laser at the difference frequency (f1 − f0), selectively detecting nonlinear interactions at the tip–sample interface. This allows for highly localized chemical contrast with minimal background, ideal for resolving fine features on complex or heterogeneous surfaces.

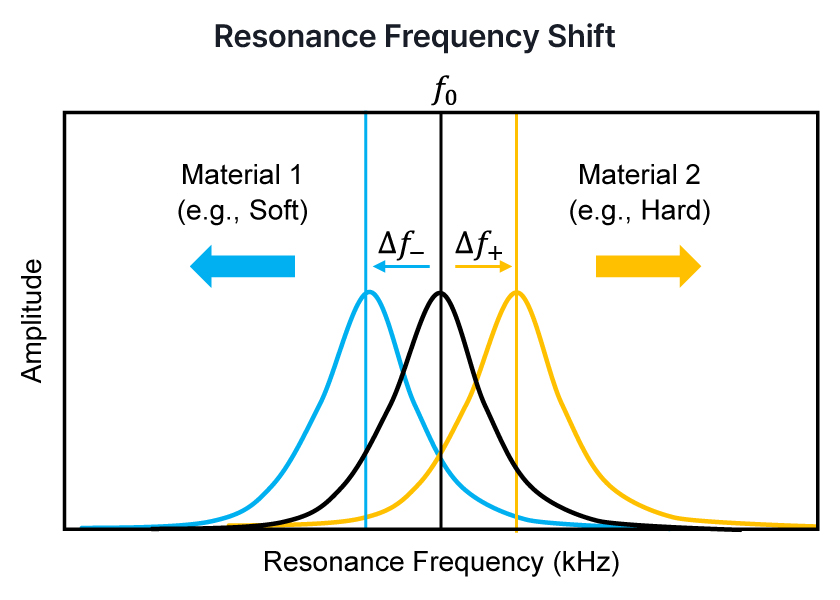

Optimized Detection Frequency for Stable PiFM Imaging

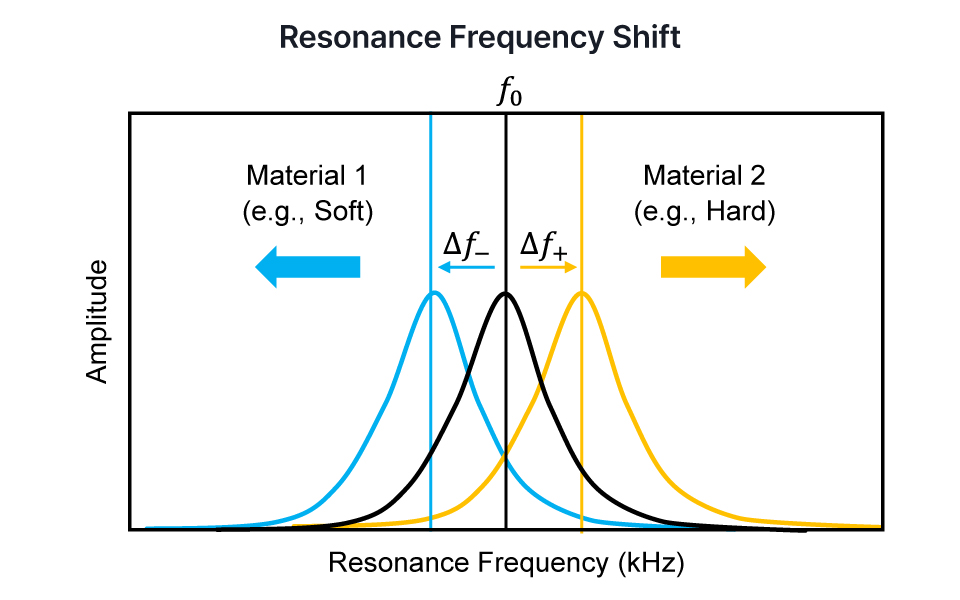

Consistent, high-resolution PiFM imaging requires more than just resonance. It demands precise frequency tracking. As the AFM tip scans across materials with varying mechanical properties, the tip–sample interaction can shift the cantilever’s resonance frequency. If not properly adjusted, this detuning may lead to signal degradation and mechanical artifacts.
Park AFM-IR Spectrometers address this by automatically scanning a narrow frequency range at every pixel and selecting the optimal detection frequency. This ensures the system stays aligned with the actual resonance condition throughout the scan, maintaining strong signals, reducing artifacts, and improving signal-to-noise ratio (SNR) for reliable chemical imaging on heterogeneous samples.
Park AFM Technology

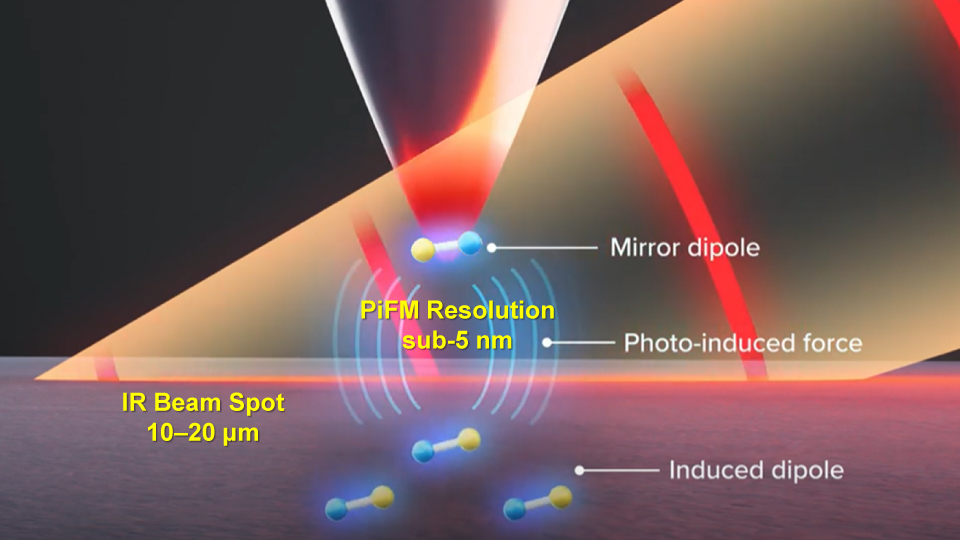

Photo-induced Force Microscopy

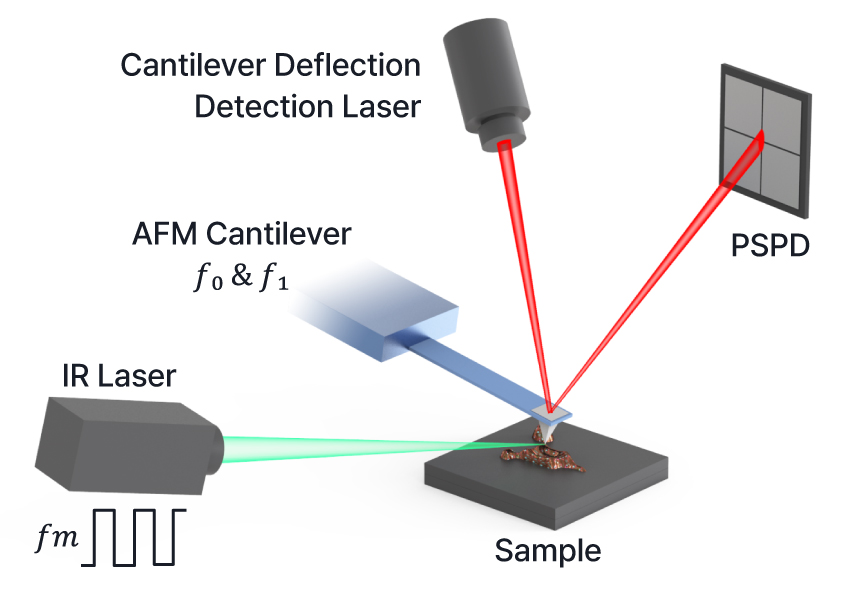

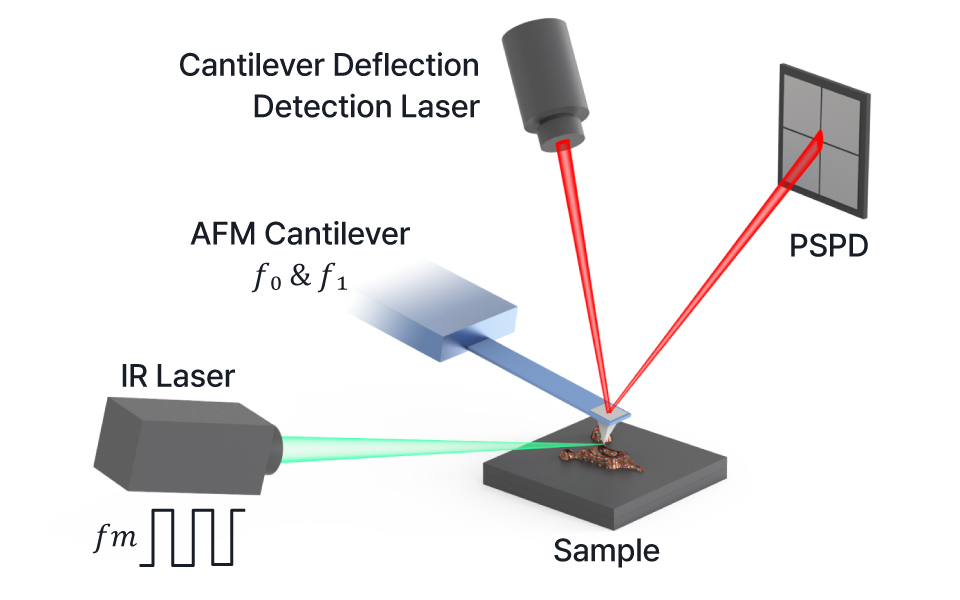

Photo-induced Force Microscopy (PiFM) exploits the photo-induced force generated when a tunable IR laser excites molecular vibrations at their resonant frequencies. In the Park AFM-IR Spectrometers, the AFM cantilever operates in Non-contact™ mode to detect these forces without ever touching the sample surface.
As the laser wavelength is swept, changes in cantilever oscillation amplitude directly reflect local IR absorption, producing both spectral and chemical maps. This fully non-invasive approach delivers true nanoscale chemical characterization, achieving sub-5 nm spatial resolution and monolayer sensitivity.
