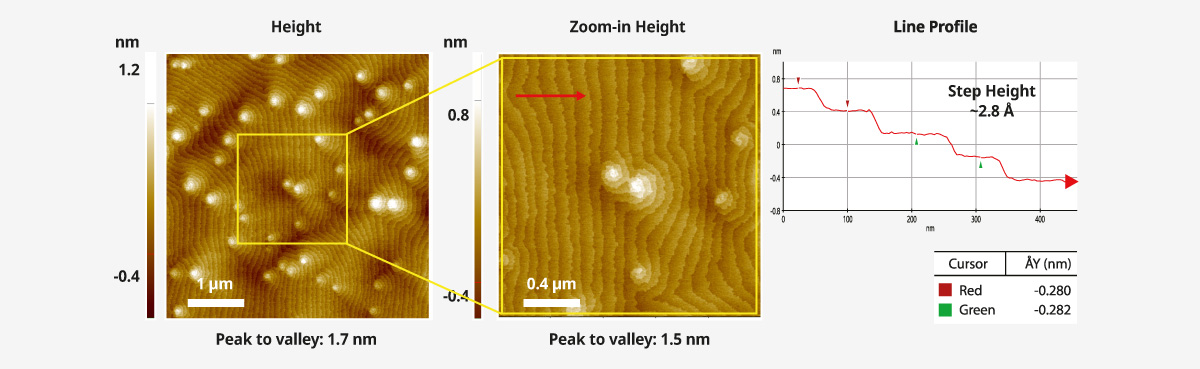

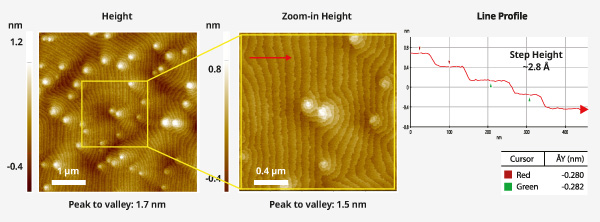

Optimal Design for Defect Review & Surface Roughness Measurement

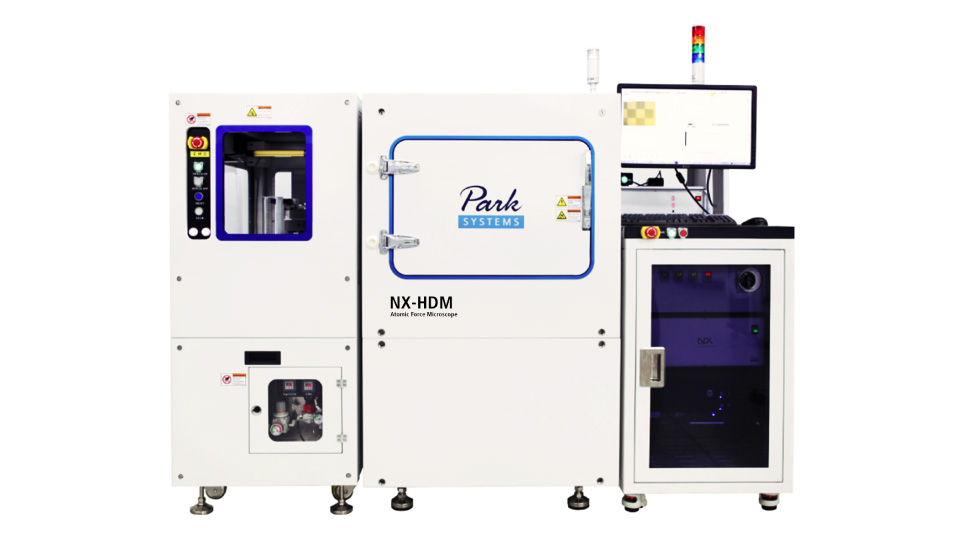

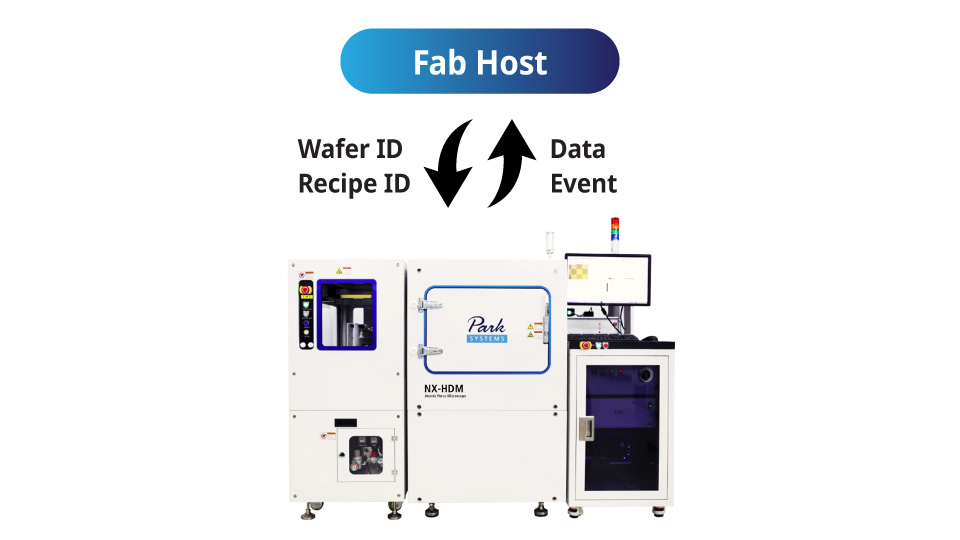

Park Systems Automated AFMs are engineered to excel wafer processing metrology, offering a precise toolset for critical measurements and analysis tasks. These advanced systems facilitate the detailed metrology required in semiconductor wafer processing, providing consistent, accurate, and extensive data that supports improved manufacturing processes and product quality. Designed to integrate seamlessly with existing processing lines, they deliver a robust solution for semiconductor production engineering and quality assurance.
